Map Configuration Reference

This page documents the three constants that define a game's physical map: TILES, LOCATION_NAMES, and HEXES. All three live in the title's map.rb file as a module included by the main Game class. For the tile string syntax used in actual tile definitions (lib/engine/tile.rb), see Tile Reference.

TILES

TILES is a hash from tile number (String) to the number of copies available in the tile bank.

TILES = {
  '3'  => 2,
  '4'  => 2,
  '7'  => 4,
  '8'  => 8,
  '9'  => 7,
  '14' => 3,
  '15' => 3,
  '57' => 4,
  '58' => 2,
  '80' => 2,
  '81' => 2,
  '82' => 2,
  '83' => 2,
}.freeze

Tile numbers refer to the standard 18xx tile catalog. Run /tiles/all on your local instance to browse every available tile, or /tiles/<number> to inspect a single tile at large scale.

If a tile number is omitted from TILES, it is unavailable in the game. If the quantity is exhausted during play, the engine prevents further lays of that tile.

LOCATION_NAMES

LOCATION_NAMES maps hex coordinates to the display names shown on the map.

LOCATION_NAMES = {
  'D2'  => 'Lansing',
  'F2'  => 'Chicago',
  'H12' => 'Altoona',
  'G19' => 'New York & Newark',
  'E23' => 'Boston',
}.freeze

A hex does not need an entry here. Hexes without a location name display no label. Coordinates follow the column-row format where the column is a letter and the row is an integer (e.g. 'G19'). The exact labelling convention (odd vs even columns for pointy-top layouts) depends on the LAYOUT value.

HEXES

HEXES is a hash of hashes. The outer key is a Symbol representing the starting colour of the hex group; the inner hash maps one or more coordinates to a tile definition string.

HEXES = {
  red: {
    ['F2'] => 'offboard=revenue:yellow_40|brown_70;path=a:3,b:_0;path=a:4,b:_0;path=a:5,b:_0',
  },
  gray: {
    ['D2'] => 'city=revenue:20;path=a:5,b:_0;path=a:4,b:_0',
  },
  white: {
    %w[F4 J14 F22] => 'city=revenue:0;upgrade=cost:80,terrain:water',
    %w[B20 D4 F10] => 'town=revenue:0',
    %w[I13 D18 B12] => '',
    %w[G15 C21]    => 'upgrade=cost:120,terrain:mountain',
  },
  yellow: {
    ['G19'] => 'city=revenue:40;city=revenue:40;path=a:3,b:_0;path=a:0,b:_1;label=NY;upgrade=cost:80,terrain:water',
  },
}.freeze

Hex colours

Hex colour examples

White — terrain only (mountain + water upgrade cost, no track):

upgrade=cost:80,terrain:water|mountain

White — two unconnected towns (no paths; players lay tiles to connect them):

town=revenue:0;town=revenue:0

Yellow (preprinted) — two-city OO hex with water upgrade cost:

city=revenue:30;city=revenue:30;path=a:1,b:_0;path=a:4,b:_1;label=OO;upgrade=cost:40,terrain:water

Red (offboard) — split offboard across two hexes with border and phase-keyed revenue:

• A3: city=revenue:yellow_40|green_50|brown_60|gray_80,hide:1,groups:Pittsburgh;path=a:5,b:_0;border=edge:4
• B2: offboard=revenue:yellow_40|green_50|brown_60|gray_80,groups:Pittsburgh;path=a:0,b:_0;border=edge:1

Grouping hexes

Multiple coordinates that share the same tile string may be grouped into an array as the key:

%w[B2 C1 E3 F4] => 'upgrade=cost:80,terrain:mountain'

This is purely syntactic sugar — each coordinate gets an independent copy of the tile.

Tile definition string in HEXES

The string assigned to each coordinate is a semicolon-separated sequence of parts. Each part is a type=key:value,key:value expression. The same tile string language is used in the shared tile catalog, with the addition that HEXES strings may include upgrade= to set terrain cost and the revenue: values may be phase-specific.

Parts reference

city=

A city node (counts toward train distance; generates revenue).

town=

A town node (counts toward train distance; generates lower revenue).

offboard=

An off-map revenue space.

path=

A track segment connecting edges or nodes.

upgrade=

Terrain cost applied when a tile is laid or upgraded on this hex.

border=

An impassable or special boundary along an edge.

label=

A city label (e.g. NY, B, OO) that restricts which tile numbers may be placed here and affects revenue bonuses in some titles.

icon=

A decorative icon rendered inside the hex.

Phase-keyed revenue

Revenue values that change by phase use the format <colour>_<value>|<colour>_<value>:

revenue:yellow_30|green_40|brown_60|gray_80

This is most commonly used for offboard hexes and some gray cities.

Edge numbering

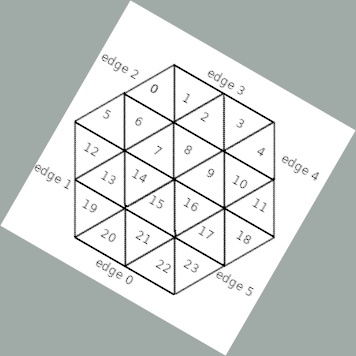

Edges are numbered 0–5 starting from the top-right and going clockwise. The exact orientation depends on LAYOUT:

Pointy-top hexagon (:pointy) — most North American titles

Flat-top hexagon (:flat) — used in some European titles

Node references (_0, _1, …) in the diagrams above correspond to city or town nodes in the order they appear in the tile string, counting from zero.

LAYOUT

LAYOUT specifies the hexagon orientation:

LAYOUT = :pointy   # Pointy-top (most common)
# or
LAYOUT = :flat     # Flat-top

The value affects edge numbering, adjacency calculations, and the coordinate system used in HEXES and LOCATION_NAMES.

Hex Coordinate System

Coordinates combine a column letter and a row number. In :pointy layout, columns advance left-to-right and rows top-to-bottom, with odd and even columns offset by half a hex vertically:

A1  B2  C1  D2  E1
    A3  B4  C3  D4
A5  B6  C5  D6  E5

The starting point and step increment depend on the map's dimensions. Inspect existing map.rb files (/tiles/<game_title>/all renders them) to calibrate your coordinate grid.

Preprinted vs Blank Hexes

Hexes listed under white with an empty string ('') are fully blank — no track, city, or town. They are upgradeable but have no starting content:

%w[C3 D2 E5] => ''

Hexes with a city= or town= string but no path= parts show a revenue node with no track connections. Corporations may lay tiles to connect these nodes during the Operating Round.

Hexes listed under gray or red are fixed for the entire game. Their tile strings define permanent routing and revenue without upgrade= constraints.

What's Next

• Tile string DSL full reference: Tile Reference
• CORPORATIONS, COMPANIES, TRAINS, PHASES schemas: Entities Reference
• Step-by-step implementation guide: Game Implementation

Version: 2026-05-08 — derived from lib/engine/game/g_1830/map.rb, lib/engine/hex.rb, lib/engine/tile.rb.
